Product details:

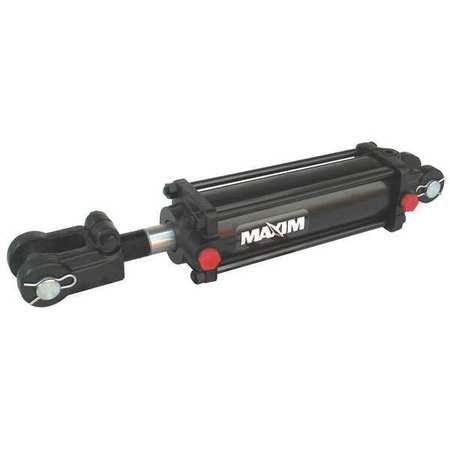

Hydraulic Cylinder, Double Acting Tie Rod, Bore Dia. (In.) 4, Stroke (In.) 16, Rod Dia. (In.) 2, Retract (In.) 31-1/2, Port Size (NPT) 1/2 In., Max. Pressure (PSI) 2500, Temp. Range -20 to 220, Ductile Iron Piston Material, High Tensile Strength Piston Rod, Precision Honed Steel Tubes, Polypak Rod Seal Type, High Tensile Tie Rods, Black Finish, Includes Pins and Clips, Pin Dia. 1-1/4 In.FeaturesRod Dia. (In.): 2Finish: Black - Includes: Pins and Clips - Dimension D (In.): 2.125Retract (In.): 31-1/2Tie Rods: High Tensile - Type: Double Acting Tie Rod - Dimension C (In.): 1.125Item: Hydraulic Cylinder - Piston Material: Ductile Iron - Pin Dia.: 1-1/4 inch - Dimension B (In.): 2.625Stroke (In.): 16Rod Seal: Polypak - Piston Rod: High Tensile Strength - Port Size (NPT): 1/2 inch - Bore Dia. (In.): 4Tubes: Precision Honed Steel - Temp. Range: -20 Degrees to 220 Degrees FMax. Pressure (PSI): 2500Dimension A (In.): 0.244NPT Port (In.): 1/2Dimension E (In.): 1.625Stroke Length: 16 inch - Single Acting/Double Acting: Double Acting - Max. Pressure: 2500 psi - Rod Seal Type: Polypak - Retracted Length: 31-1/2 inch - Bore Dia.: 4 inch - Column Load: 31,410 lb. - Extended Length: 47-1/2 inch - Rod Dia.: 2 inch - Port
